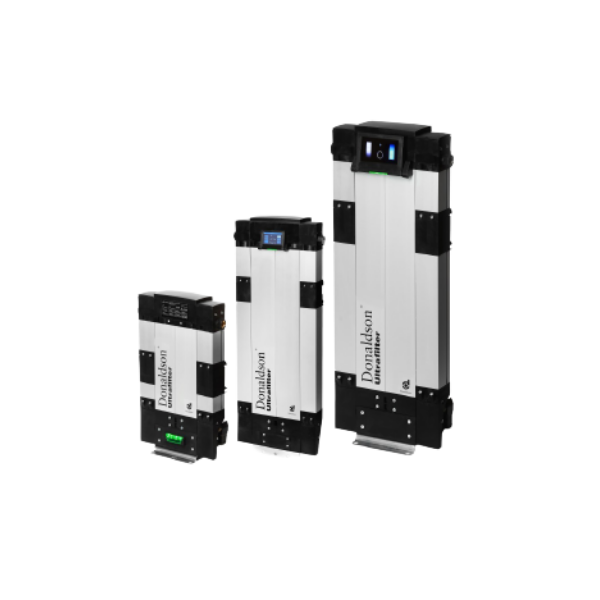

Donaldson Adsorption Dryer Ultrapac smart 1C606007
aed
24000
Availability: Out of stock
Donaldson Adsorption dryer,ultrapac smart 0065, standard,230V,1 inch,BSP
>Technical Specifications
>
Desiccant Cartridges
4UltraSilencer Cartridges
4
Model
Ultrapac Smart
Dryer Size
0065
Flow Rate Nominal (Air)
65 m³/h
Pressure Dew Point
-40 °C (-40 °F)
Maximum Operating Pressure
12 bar (174 psi)
Minimum Operating Pressure
4 bar (58 psi)
Maximum Operating Temperature
55 °C (131 °F)
Minimum Operating Temperature
5 °C (41 °F)
Connection Type
G 1
Height
1377 mm (54.21 inch)
Width
464 mm (18.27 inch)
Depth
191 mm (7.52 inch)
Weight
57 kg (125.66 lb)
Frequency (Hz)
50-60
Voltage
230
Superplus and plus variants are available.
>
